100BaseT4

Definition of 100BaseT4 in The Network Encyclopedia.

100BaseT4

A type of standard for implementing Fast Ethernet networks. 100BaseT4 is based on 802.3u, which is an extension of the 802.3 specifications of Project 802 developed by the IEEE. 100BaseT4 is the most commonly used implementation of Fast Ethernet today.
 100BaseT4 network is the most widely used implementation.

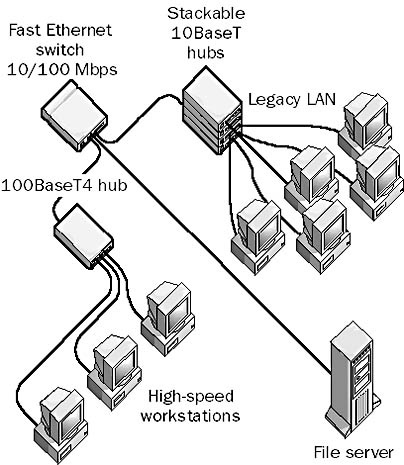

Graphic 0-5. A 100BaseT4 network.

How Does a 100BASET4 Network Works

100BaseT4 networks are wired together in a star topology using unshielded twisted-pair (UTP) cabling and 100-Mbps hubs or Ethernet switches. The UTP cabling can be category 3 cabling, category 4 cabling, or category 5 cabling—with category 5 (cat5) cabling and enhanced category 5 cabling being the most commonly used options. 100BaseT4 uses all four pairs of wire standard UTP cabling. One pair is used for transmission and another pair for reception. The other two pairs are bidirectional and can be used to transmit or receive data. In this way, three of the four wire pairs are used at any given time to provide half-duplex transmission or reception of signals. Sharing three pairs of wires for data transfer allows 100BaseT4 to make use of lower-grade cabling installed in older buildings.

The maximum length of any segment of UTP cabling connecting a station (computer) to a hub is 100 meters. This ensures that round-trip signaling specifications are met, since violating these specifications can produce late collisions that disrupt network communications. The Electronic Industries Alliance/Telecommunications Industry Association (EIA/TIA)–recommended length of cabling between the station and the wiring closet is only 90 meters, allowing up to 10 meters more of cabling for patch cables used to connect patch panels to hubs or switches. The pinning of the RJ-45 connectors used for 100BaseT4 wiring is the same as for 10BaseT wiring.

TIP

Make sure all your cabling, connectors, and patch panels are fully cat5-compliant. Make sure that when UTP cabling is connected to patch panels, wall plates, or connectors, the wires are not untwisted more than half an inch at the termination point. 100BaseT4 most benefits companies with an older, preinstalled base of category 3 or category 4 cabling. 100BaseT4 hubs and switches are typically available in an autosensing 10/100-Mbps variety for interoperability with older 10BaseT networks and to facilitate an easy upgrade from 10BaseT to 100BaseT.
